| Robotic Software Generation |
| Software Generation | BharatBot0.25 Software |
| Mapping Technology |
| Image Mapping | RT2R 3.0 Technology - Real time terrain recognition technology with LDS Lidar & SLAM. It is the same technology which is used in unmanned vehicles and helps the robot to be fully independent in terms of navigation. It is the best robotic mapping technology and is much fffaster and accurate than any other mapping like Camera based VSLAM or Gyro mapping. |

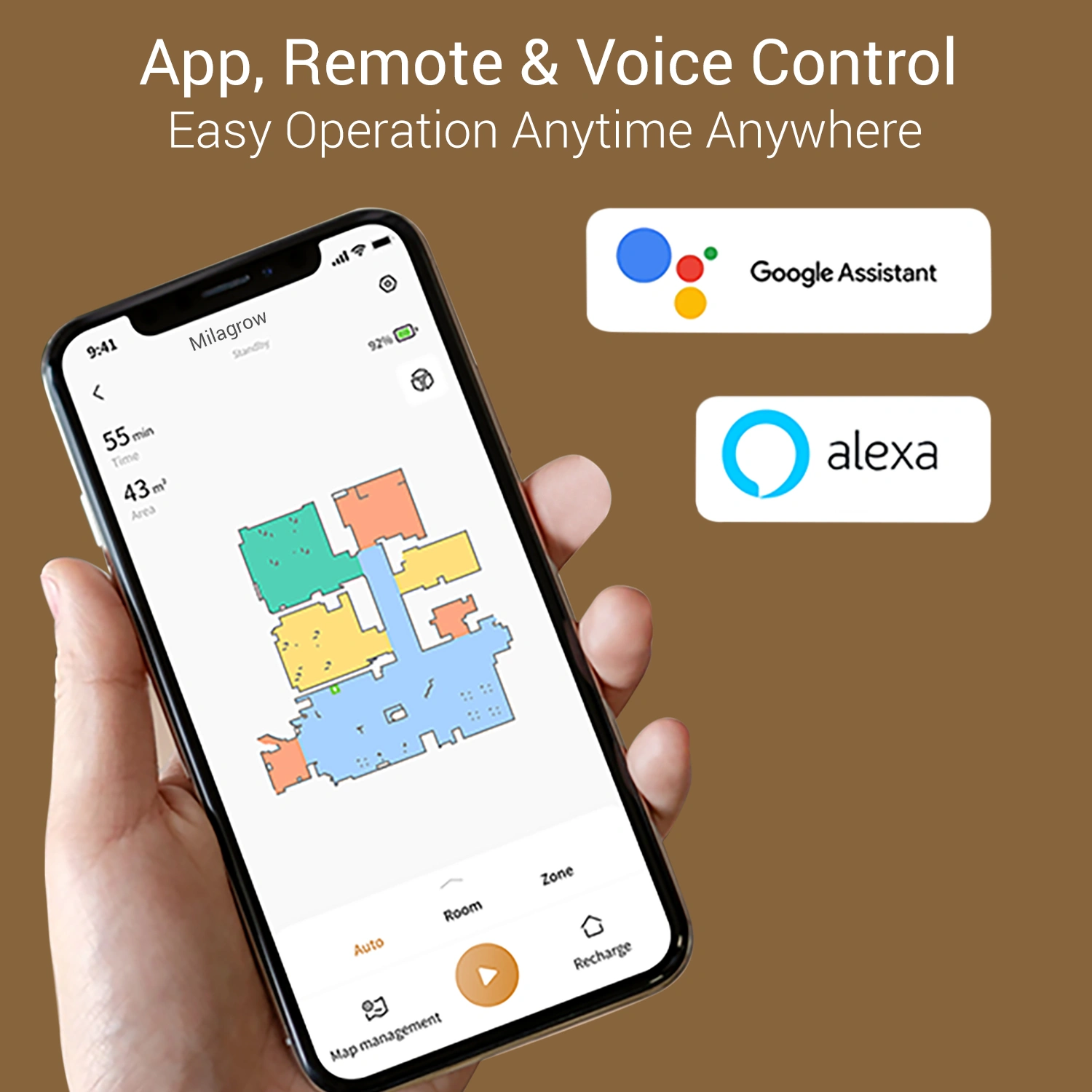

| Live Map Display on Mobile | iMap 16 Galaxy will display the real-time progress and map while cleaning, on your mobile handset and remember the cleaned vs uncleaned areas and update it in real time |
| Lidar Laser Scanning Range | Upto 8.0 meter with accuracy of upto 8mm |
| Laser Scan System | Scans 6*360 degree/sec 4775 time/sec. iMap 16 Galaxy LDS can work accurately even in dark places. Human view angle is 120-130 degree, other LDS in market can only reach 3900 time/s. 4-6 meter distance and +/- 2mm accuracy |
| Real-Time Path Planning | Calculates Ideal and shortest Path in real time to memorize and reduce time taken |
| Area Cleaned Display | Displays Cleaned and Left Area and comes back to Clean the Left out Areas in case work is stopped midway |
| Move from One Room to Another | After cleaning one room the robot will go to another room, without assistance |
| Memory Function | No matter how many rooms are and their size. Even after battery depletion the iMap will recharge and resume from the point it left cleaning. |
| Zoning and Sequential Cleaning | Prioritize zones by marking them on the mobile app map & then ordering sequential cleaning. |
| Virtual Wall | Prevents robot from going into unwanted areas simply by demarcating the area on the mobile app. |
| SLAM Algorithm | iMap 16 Galaxy uses the disruptive Simultaneous Localization and Mapping (SLAM) for constructing or updating the map of home or office environment while simultaneously keeping track of an the Robot's location within the map. |
| Air Purification & Healthcare Functions |
| HEPA or Anti-Bacteria Filters | Human Eye can detect upto 10 Microns. It is estimated that about 40% Indoor pollutants are smaller than 0.3 microns. They include Bacteria, Viruses, Gases, VOC, Mold, and Fungi which can be very harmful |
| HEPA Filter Grade | Filter Efficiency HEPA 12 - 99.97% @ 0.3 micron. 99.5% efficiency upto 0.1 micron. They can filter out impurities and particles in the air, such as viruses, respirable dust, mites eggs and excretions, mold, dust, allergens, pollen, bacteria, dust mites or cigarette smoke, asbestos, various toxic dusts and aerosols from the air, dander, allergens from the fur of dogs or cats. Virions (or “particles”) of COVID19 are spherical particles between 0.06 micron and 0.14 micron in diameter, averaging about 0.125 micron, measured by electron microscope (Zhu et al, 2020). This means that coronavirus particles are smaller than PM2.5, but larger than some dust and gas particles |
| Covid Spore Removal from Floor | The water tank and microfiber has been modified to handle the viscosity of 1% sodium hypochlorite solution, as per ICMR guidelines which kills the virus spores on surfaces. |
| Wet and Dry Cleaning | Yes |
| Antimicrobial Microfiber Mop | Anti Bacterial, Anti Microbial, Anti Virus 0.5 micron microfiber cloth mop helps minimize the spread of infections in hospitals and similar environments. These microfibers are able to attach themselves to even the smallest, most microscopic dirt particles—ones that normal cloth fibers (positively giant in comparison) crudely brush past. If forces were visible, you'd be able to see that there are adhesive forces (the forces of attraction) between microfibers and dirt. |
| Pressure Mopping | The wet mopping is done with a pressure of 4 Newtons to remove stubborn dirt and stains |
| Robotic 6th Sense |
| Real Time Map Building Technology | RT2R 3.0 Technology - Real time terrain recognition technology with LDS Lidar. iMap 16 uses the disruptive Simultaneous Localization and Mapping (SLAM) for constructing or updating the map of home or office environment while simultaneously keeping track of an the Robot's location within the map. |
| Robotic Wi-Fi Control | Yes |
| Robotic Remote Management | Easy to use interface enables you to manage the robot from anywhere, anytime via a Mobile Internet Device, in addition one remote control is provided for ease of operation to assist Sr. Citizens and when internet is not available in some location. |
| Robotic Water Tank for Wet Cleaning | Yes with Electronic Control |
| Robotic Stair and Fall Sensor | Yes |
| Robotic Obstacle and Optical Sensor | Yes |
| Robotic Self Diagnosis | Yes |
| Robotic Accelerometer Sensor | Speed Adjustor |
| Robotic Gyro Sensor | Yes |
| Robotic Extra Dirt Sensor | Yes |
| Robotic Virtual Wall | Prevents robot from going into unwanted areas simply by demarcating the area on the mobile app. |
| Pre-Scheduled Robotic Cleaning | On Mobile Remote Control with Real Time Clock multiples times a day & different times a week. |
| Robotic Self Charging | Yes |
| Robotic Voice Prompts | Alexa & Google Assistant |
| Software Upgrade | Over the Air |
| Robotic Cloud Storage | Yes |
| Robotic Laser Sensor (LDS) | Yes |
| Robotic Bumper Sensors | Yes |
| Robotic Distance Sensor | Yes |
| Robotic Cliff Sensors | Yes |
| Robotic Manoeuvres in small areas | Yes |
| Robotic Wall Sensor | Yes |
| Total Number of Sensors | 32 Accurate Sensors |
| Cleaning Functions & Performance |
| Water Tank for Wet Cleaning | Yes with 350 ml capacity |
| Wet Mop Cleaning | Proper Wet Cleaning with Anti Microbial Smart Mop. The water from the water tank dampens the front portion of the Large Mop Attachment to remove stubborn dirt and debris. The back portion of the mop remains dry and wipes the floor to a spotless clean. |
| Quad Brush Cleaning System | Yes |
| Anti Slip Tyres | 16 mm width |
| One Time Full Go (minutes) | Upto 240 min. depends upon the environment |
| Doorsill crossing & Carpet Climbing Ability | Yes |
| Climb Capability | 20 mm |
| Suction Power | Japanese Brushless motor, which has TORNADO 10000Pa suction power, maximizes the cleaning power with the main brush. |
| Pet Hair Removal | Yes |
| Working Speed (meters / second) | 0.35 m/s. With RT2R 3.0 Tech, LDS, SLAM and BLDC Motor the iMap 15 has higher speed and faster turning power. Helping it clean double the area in same time. |
| Cleaning Width | 270 mm |
| Main Brush Cleaning Width mm | 160 mm |
| Turbo Suction | 3 modes low, normal, turbo from 2400 Pa to 10000 Pa |
| Number of Side Brushes | 1 with 3 Bristles |
| All in One Cover Design for Suction | Yes. Use with or without the brush |
| Main Brush Bristles Type | Unbreakable Silk Nylon PA 66 long lasting brush |
| Types of Cleaning | Only Mopping, Only Vacuuming, Mopping & Vacuuming |
| Cleaning Algorithms & Modes |
| Cleaning Modes | The fastest and smartest mapping and self-navigation Robotic Vacuum Cleaner in the world. iMap 16 Pro performs its functions in a remarkably intelligent way. As it instantly and accurately scans the working space 360 degrees, it precisely moves between rooms. With its real-time terrain recognition technology, it decides the most effective and shortest route and the most suitable cleaning method. Also, It allows users to check the real-time cleaning performance of iMap-15 regardless of location, on their mobile device. |
| Edge to Edge and Wall Cleaning | Yes |
| Automatic Double Cleaning | In Spot |
| S Shape | Live Map |
| Turbo Mode | 4 modes from 2400 Pa to 10000 Pa |
| Spot Cleaning | This mode entails an option to apply a one-time or square cleaning area by drawing a zone on the mobile app. |
| Pressure Mopping | The wet mopping is done with a pressure of 4 Newtons to remove stubborn dirt and stains |

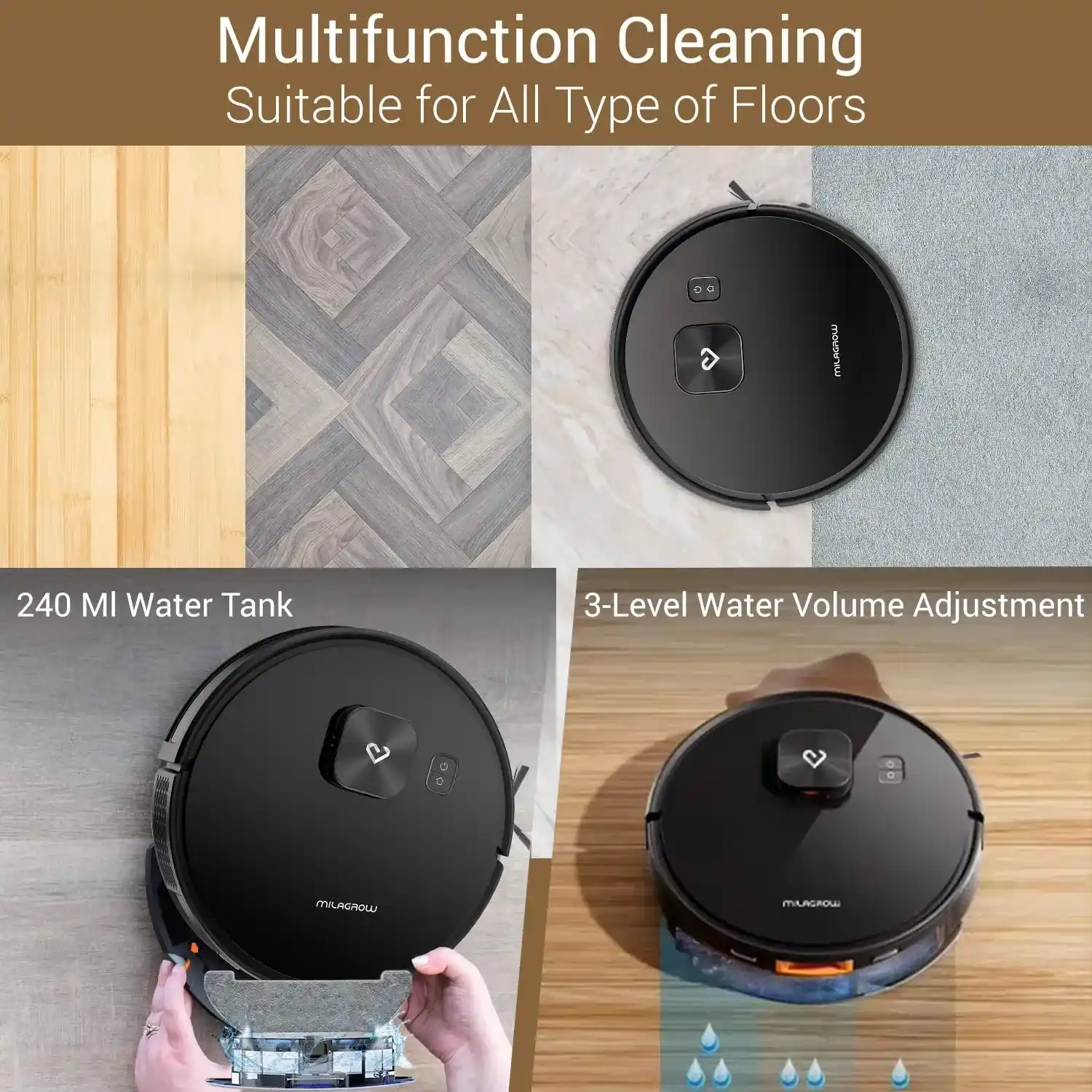

| Cleaning Surfaces |
| Smooth Tiles Cleaning | Yes |
| Flat Carpet Cleaning | Yes |
| Hard Floor Cleaning | Yes |
| Wood Floor Cleaning | Yes |
| Glass Floor Cleaning | Yes |
| Marble Floor Cleaning | Yes |
| Linoleum Floor Cleaning | Yes |
| Slippery Tile | Yes |
| Short Hair Carpet Cleaning | Yes |
| AI, IOT, Wi-Fi & Remote Controls |
| Mobile App + Remote | Yes |
| Scheduling over Wi-Fi | Yes |
| Robot Hotspot | Yes |
| AI Automation and Scenario | Yes, You can automate & build multiple scenarios for your iMap 16 Galaxy. |
| Multiple Robots Control | You can control multiple robots of iMap from single mobile device, in the same app and thereby divide a large cleaning area between multiple units. You can also control other IOT appliances from the same app, even of other brands. |
| Family Management | You can add unlimited members to share the device for this purpose. |
| Self Preservation & Diagnosis |
| Low Battery | Yes |
| Fall Sensor Blocked | Yes |
| Wall Sensor Failing | Yes |
| Front Bumper Stuck | Yes |
| Wheel Stuck | Yes |
| Wheel Lifted | Yes |
| Suction Blocked | Yes |
| Main Brush Stuck | Yes |
| Side Brush Stuck | Yes |
| Battery Connection | Yes |
| Not Charging | Yes |
| Vacuum Motor Overloaded | Yes |
| Battery Overheating | Yes |
| Robot Detects Error and Sends to Mobile | Yes, The Imap detects the faults the real time and shows on the mobile making is easier for solutions and repair. |
| Additional Specifications |
| Floor Robot Noise Level (db) | Upto 50dB (WST) |
| Floor Robot LED Display | Yes |
| Floor Robot Button Type | Capacitive |
| Floor Robot Rated Power | 30W |
| Floor Robot Average Power | 25W-50W |
| Floor Robot Input Voltage | 100-240V, 50/60 Hz, 24 V through charging station |
| Floor Robot Output Voltage | DC 14.4V, 1 Amp |
| Floor Robot Height (mm) | 75.7 mm |
| Floor Robot Base Clearance (mm) | 20 mm |
| Floor Robot Total Height (mm) | 95.7 mm |
| Floor Robot Diameter (mm) | 320 mm |
| Floor Robot Dimensions (W*H) mm | 320x100x96 |
| Floor Robot Weight (Kg) | 4.67 |
| Floor Robot Temperature Range | (-)10 to 45 C |
| Floor Robot Humidity Range | Less Than 90 H |
| Floor Robot Colour | White |
| Floor Robot Top Surface Finish | IML surface |
| Floor Robot Material | ABS, PC, PA6 |
| DustBin & Water Tank |
| Main DustBin Size | 250 ml. |
| Dustbin Type | Bagless, Back |
| Exhaust Filter | HEPA |
| Primary Filter | Nylon |
| Water Tank Wet Cleaning | Yes 350 ml |
| Mop Size for Wet Mopping mm | 270 x155 mm |
| Docking Station Specifications |
| Charging Dock Range (Meters) | Unlimited. Imap will find it's way back to the charging station if it has started from where. |
| Docking Station Dimension LXWXH | 138x165x82 mm |
| Input Voltage | DC 24 V, 50/60 Hz |
| Temperature Range | (-)10 to 45 C |
| Operating Humidity Range | Less Than 90 H |

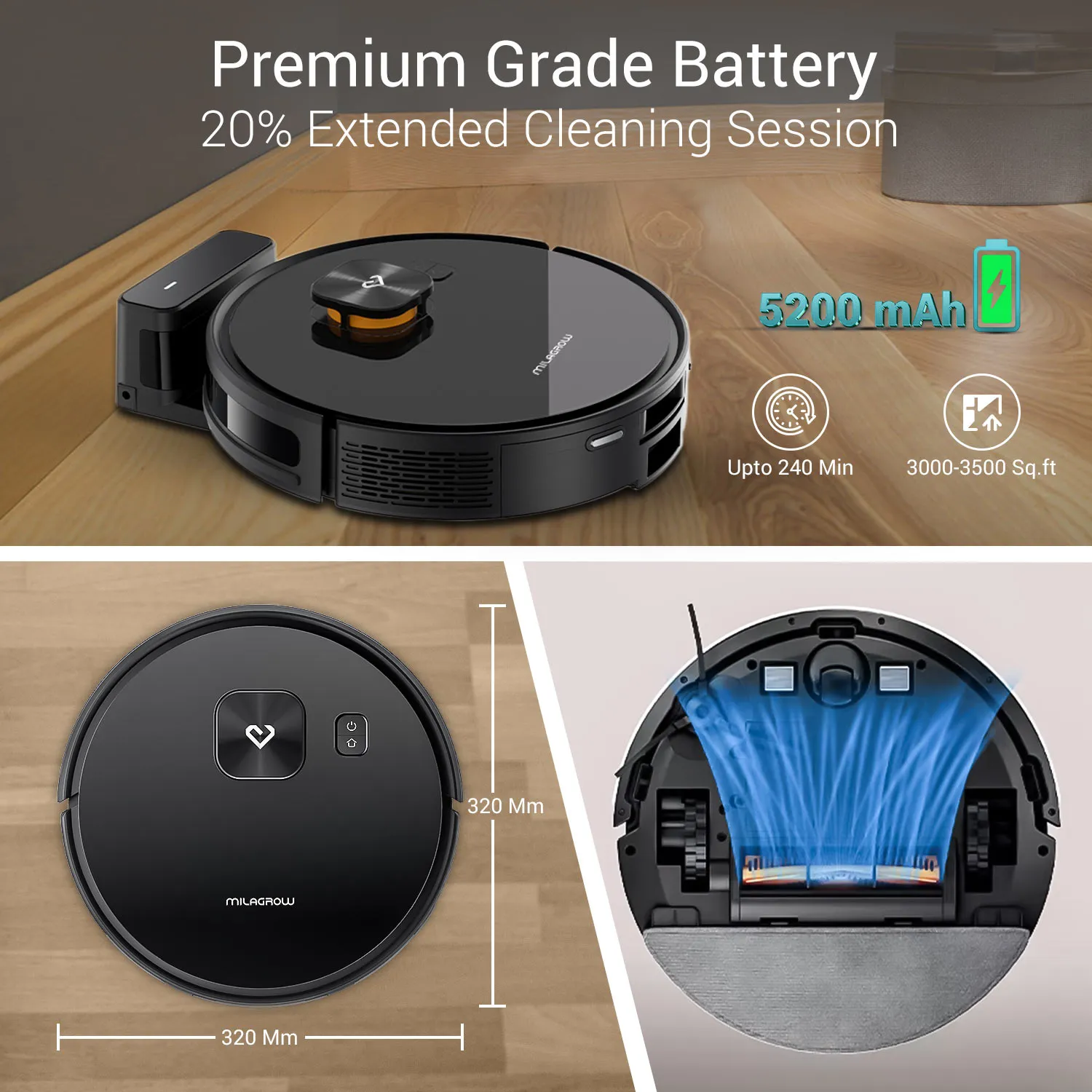

| Battery |
| Max Working Time (Min) | Upto 240 minutes(in mopping mode only) |
| Max Coverage upon full battery | Up to 3500 Sq Ft |
| Battery Technology | Lithium ion EV Grade Battery |
| Battery Voltage | 14.4 V |
| Time for Full Charge (hours) | 4 hours |
| Battery capacity | 5200 mAh |
| AC Adapter Specifications |
| Unit Average Power | 20W-50W |
| Input | 100-240V,50-60Hz |
| Output | DC 24V/1500 mA |
| Accessories |
| Charging Dock | Yes Laser Guidance |
| Rechargeable Battery Pack | Installed |
| Water Tank | Yes |
| Charger | Yes |
| Cleaning Brush | Yes |
| Micro fiber mop | 1+1 |
| Side Brush | 1 Installed + 1 Extra |
| Rolling Brush Opening Tool | No |
| Filter Mesh | 1 Installed + 1 Extra |
| HEPA Filter | 1+1 |
| Screw Drivers | No |
| Instruction Manual | Yes |
| Main Dustbin | Installed |
| Main Brush Cleaning Tool | Yes |
| Box |
| Inside Packing | Paper Mache |
| Gift Box With Varnish or Plain | Industrial Box |
| Box Dimensions (HxWXD) | 370x470x150 mm |
| Gross Weight Box (kg) | 5.67 Kg |
| Certification |
| Certification | CE(LVD,EMC) & Rohs |
| Product Warranty |
| Robot Warranty | 1 Year Warranty. Please read detailed warranty terms on the website |
| In the Box: | Charging Dock Remote Control Rechargeable Battery Pack Installed Water Tank Charger Cleaning Brush Microfiber mop Side Brush - 1 Installed + 1 Extra Rolling Brush Opening Tool Filter Mesh - 1 Installed + 1 Extra HEPA Filter Instruction Manual Main Dustbin Installed |
